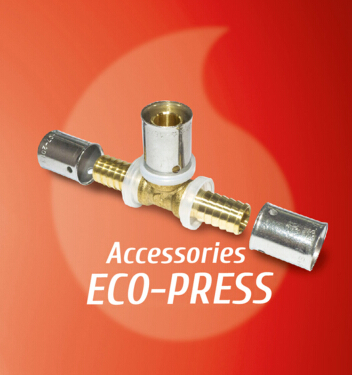

Parts and Material：

Body : CW617N or CW614N, in accordance with UNE-EN 15875

Ring: AISI 304

Ring protective seat: PP

Superiority：

1.    The 6-layer serrated design of the head provides better tightness of the product.

2.    The chamfer of the head part provides perfect transition for water flowing from the pipe to the fitting, which reduces water flow resistance and the sediments at the same time.

3.    The ring is made of AISI 304, designed in accordance with the mechanical pressing formability and marked the diameter and thickness of the pipe. The ring has 3 observation holes to guarantee the proper installation of the pipe.

4.    The ring protective seat is made of polypropylene, which fixes the ring and provides easy press connection while the pipe inserts the ring.
